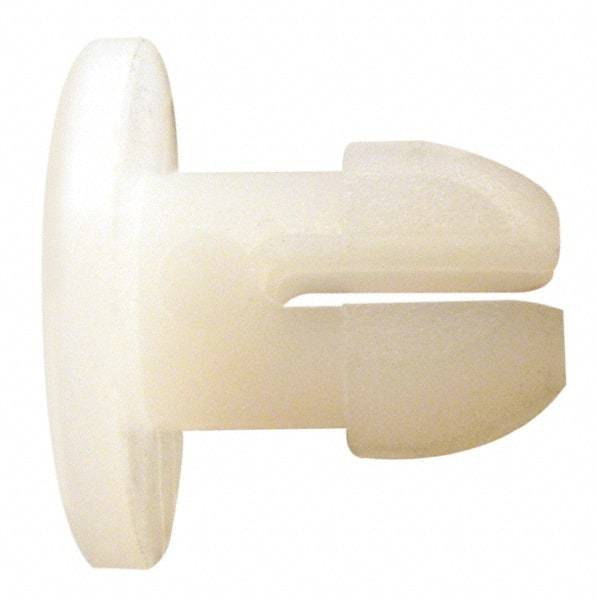

Made in USA - 0.172" Hole Diam, 1.2" OAL, Split Shank, Nylon Panel Rivet - 1-1/8" Length Under Head, 0.95" Material Thickness, 9/16" Head Diam
Item #: 05168976
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Panel rivets are inserted into punched or predrilled holes in thin materials. They are push-in fasteners that resist shaking, vibration, loosening and abrasion.
Split shanks have two legs that compress through a hole and then fold over on the other side of the workpiece.
| Product Specifications | |
|---|---|
| Type | Panel Rivet |
| Shank Type | Split |
| Minimum Hole Diameter (Decimal Inch) | 0.1720 |
| Maximum Hole Diameter (Decimal Inch) | 0.1720 |
| Maximum Material Thickness (Decimal Inch) | 0.9500 |
| Head Diameter (Decimal Inch) | 0.5625 |
| Head Diameter (Inch) | 9/16 |
| Length Under Head (Decimal Inch) | 1.1240 |
| Overall Length (Decimal Inch) | 1.2000 |
| Material | Nylon |
