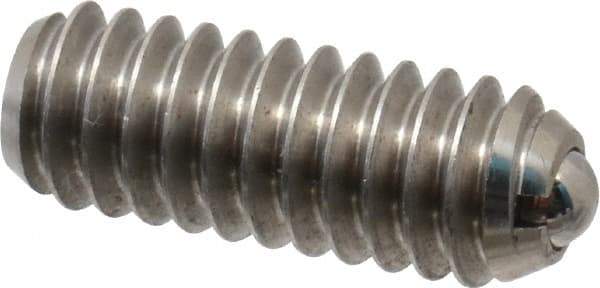

Vlier - 1/4-20, 0.125" Ball Diam, 0.675" Body Length, 0.035" Max Ball Reach, Threaded Ball Plunger - Stainless Steel Body, Stainless Steel Ball, 3 Lb Initial End Force, 7 Lb Final End Force
Item #: 05138086
Brand: Vlier
Model #: SSPHB54
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel balls are ideal for food, medical and industries where resistance from contamination is required. They are also rust and corrosion and resistant.
| Product Specifications | |
|---|---|
| Thread Size | 1/4-20 |
| Body Length (Decimal Inch) | 0.6750 |
| Body Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Initial End Force (Lb.) | 3.00 |
| Final End Force (Lb.) | 7.00 |
| Locking Element | No |
| Ball Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | Passivate |
| Maximum Ball Reach (Decimal Inch) | 0.0350 |
