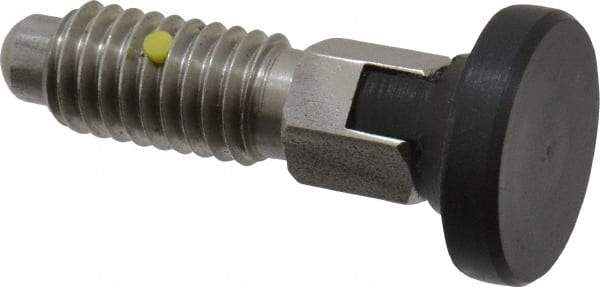

Gibraltar - 3/8-16, 1/4" Max Plunger Diam, 0.25 Lb Init to 2 Lb Final End Force, Locking Knob Handle Plunger - Delrin Knob, 0.94" Body Length, 3/4" Length Under Head/Shoulder, 0.18" Plunger Projection
Item #: 04627931
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 3/8-16 |
| Plunger Type | Locking |
| Knob Style | Delrin |
| Body Length (Decimal Inch) | 0.9400 |
| Length Under Head/Shoulder (Decimal Inch) | 0.7500 |
| Plunger Projection (Decimal Inch) | 0.1800 |
| Maximum Plunger Diameter (Decimal Inch) | 0.2500 |
| Initial End Force (Lb.) | 0.25 |
| Final End Force (Lb.) | 2.00 |
| Locking Element | Yes |
| Plunger Length (Decimal Inch) | 1.4000 |
| Head Diameter (Decimal Inch) | 0.7500 |
| Head & Shoulder Height (Decimal Inch) | 0.6500 |
| Hex Size (Inch) | 3/8 |
| Material | Stainless Steel |
| Finish/Coating | Black Oxide |
