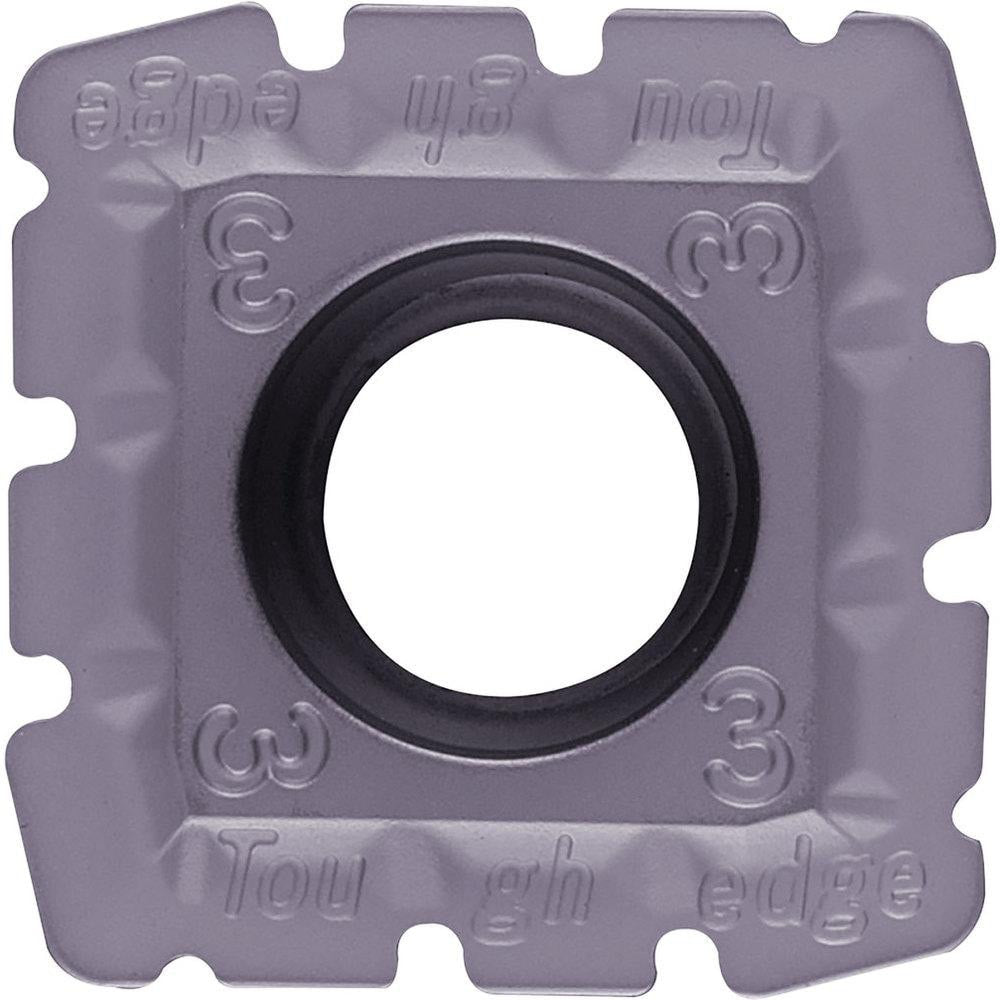

Milling Insert: SPMT090308E-Z PR1825, Carbide
Item #: 86708195
Brand: Kyocera
Model #: TLT00070
Product Specifications
| Insert Style | SPMT |
| Insert Size | 090308 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Thickness (mm) | 3.1800 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 11.000 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | MEF Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.4000 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | SPMT090308EZPR1825 |
| Iso Code | SPMT090308E-Z |
| Manufacturers Catalog Number | SPMT090308EZPR1825 |
| Chip Breaker | E-Z |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Width (mm - 2 Decimals) | 9.53 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
