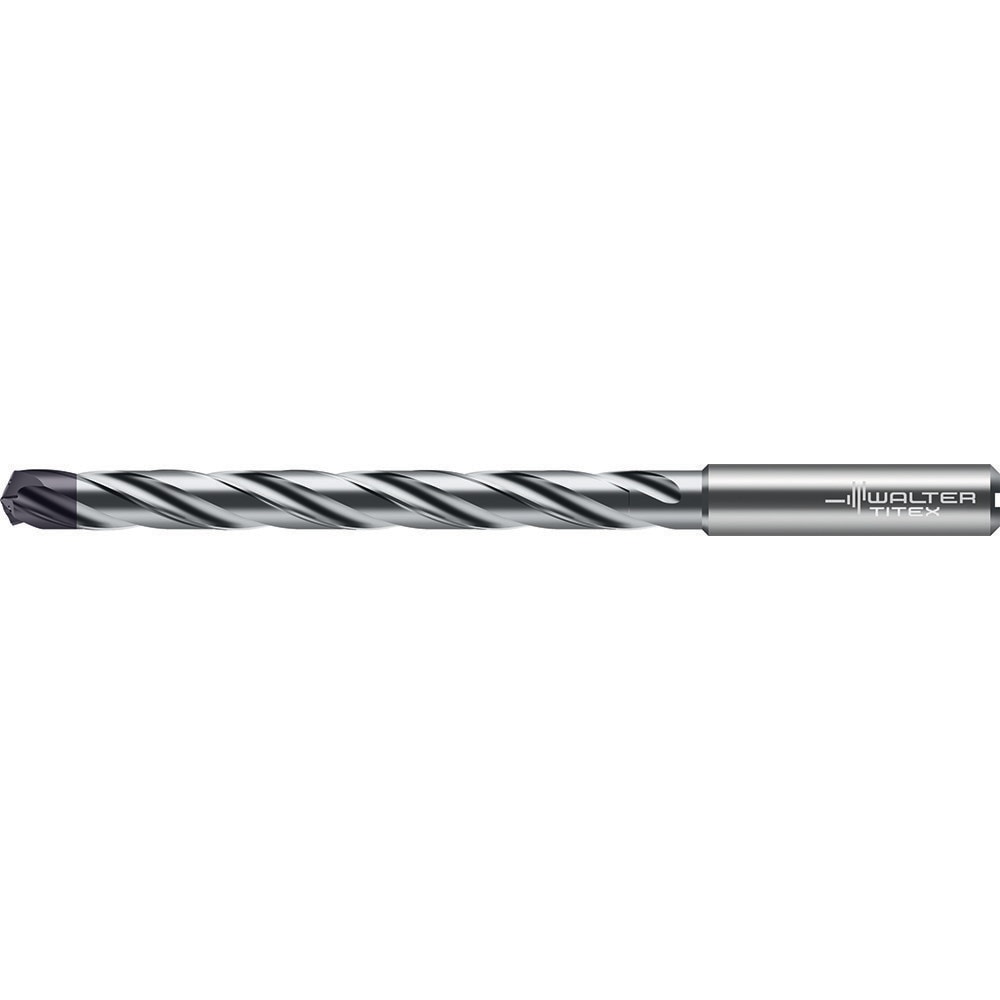

Jobber Length Drill Bits; Drill Bit Size (mm): 3.30; Drill Bit Size (Decimal Inch): 0.1299; Drill Bit Material: Solid Carbide; Drill Point Angle (Degrees): 135; Coating/Finish: ZrN
Item #: 40144750
Brand: Walter-Titex
Model #: 8374548
Product Specifications
| Drill Bit Size (mm) | 3.30 |
| Drill Bit Size (Decimal Inch) | 0.1299 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | ZrN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Number of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Spiral Type | Regular |
| Flute Length (mm) | 34.00 |
| Flute Length (Decimal Inch) | 1.3386 |
| Series | DC183 |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 6 |
| Maximum Drilling Depth (Decimal Inch) | 1.1024 |
| Maximum Drilling Depth (mm) | 28 |
| Shank Length (mm) | 36 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.68 |
| Drill Point Length (Decimal Inch) | 0.0269 |
| Drill Bit Diameter Tolerance | m7 |
| Shank Type | Cylindrical |
| Drill Bit Grade | WJ30EY |
| Material Grade | Solid Carbide |
| UNSPSC Code | 23241634 |
