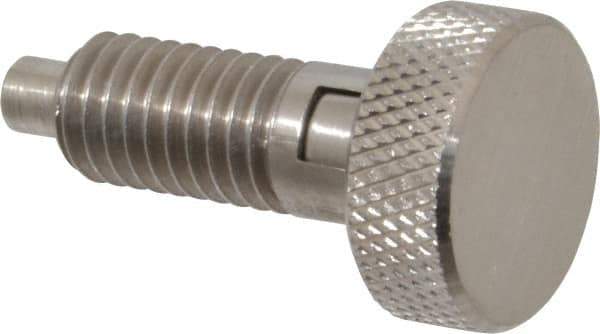

Gibraltar - 1/2-13, 0.65" Thread Length, 1/4 to 1/4" Max Plunger Diam, 0.5 Lb Init to 4 Lb Final End Force, Locking Knob Handle Plunger - Knurled Knob, 0.9" Length Under Head/Shoulder, 1/4" Plunger Projection
Item #: 04456000
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Thread Length (Decimal Inch) | 0.6500 |
| Plunger Type | Locking |
| Knob Style | Knurled |
| Length Under Head/Shoulder (Decimal Inch) | 0.9000 |
| Plunger Projection (Decimal Inch) | 0.2500 |
| Maximum Plunger Diameter (Decimal Inch) | 0.2490 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (Lb.) | 4.00 |
| Locking Element | No |
| Minimum Plunger Diameter (Decimal Inch) | 0.2480 |
| Plunger Length (Decimal Inch) | 1.3800 |
| Head Diameter (Decimal Inch) | 1.0000 |
| Head Height (Decimal Inch) | 0.4800 |
| Material | Stainless Steel |
