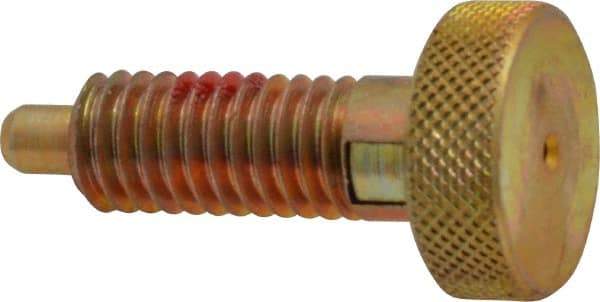

Gibraltar - 3/8-16, 3/4" Thread Length, 0.185 to 0.186" Max Plunger Diam, 0.5 Lb Init to 3 Lb Final End Force, Locking Knob Handle Plunger - Knurled Knob, 0.97" Length Under Head/Shoulder, 0.22" Plunger Projection
Item #: 04455853
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 3/8-16 |
| Thread Length (Decimal Inch) | 0.7500 |
| Plunger Type | Locking |
| Knob Style | Knurled |
| Length Under Head/Shoulder (Decimal Inch) | 0.9700 |
| Plunger Projection (Decimal Inch) | 0.2200 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1860 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (Lb.) | 3.00 |
| Locking Element | Yes |
| Minimum Plunger Diameter (Decimal Inch) | 0.1850 |
| Plunger Length (Decimal Inch) | 1.2600 |
| Head Diameter (Decimal Inch) | 0.7500 |
| Head Height (Decimal Inch) | 0.2900 |
| Material | Steel |
| Finish/Coating | Zinc Gold Chromate |
