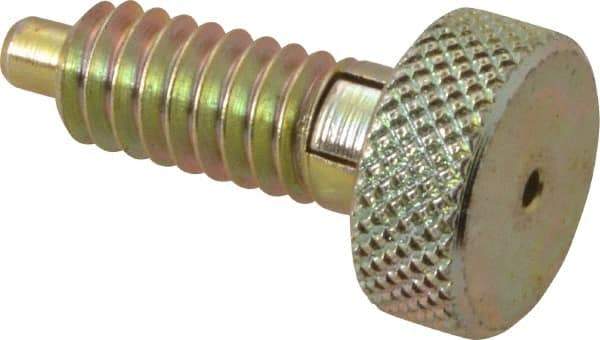

Gibraltar - 1/4-20, 0.4" Thread Length, 0.123" Max Plunger Diam, 0.5 Lb Init to 2 Lb Final End Force, Locking Knob Handle Plunger - Zinc Chromate Plated, Knurled Knob, 0.525" Body Length, 0.4" Length Under Head/Shoulder, 1/8" Plunger Projection
Item #: 04455820
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/4-20 |
| Thread Length (Decimal Inch) | 0.4000 |
| Plunger Type | Locking |
| Knob Style | Knurled |
| Body Length (Decimal Inch) | 0.5250 |
| Length Under Head/Shoulder (Decimal Inch) | 0.4000 |
| Plunger Projection (Decimal Inch) | 0.1250 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1230 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (Lb.) | 2.00 |
| Locking Element | No |
| Plunger Length (Decimal Inch) | 0.8050 |
| Head Diameter (Decimal Inch) | 0.5000 |
| Head Height (Decimal Inch) | 0.2800 |
| Head & Shoulder Height (Decimal Inch) | 0.4100 |
| Material | Steel |
| Finish/Coating | Zinc Plated Chromate |
| Plunger Diameter Tolerance (Decimal Inch) | +0.0010 |
