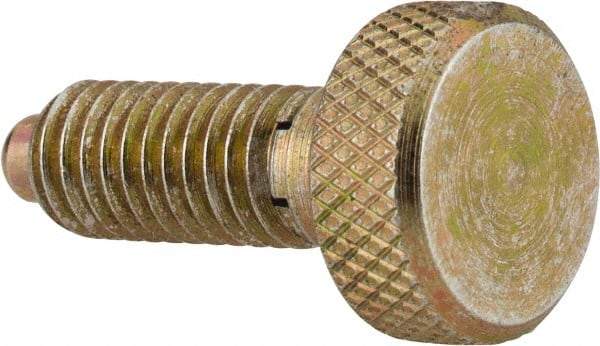

Gibraltar - 3/8-16, 3/4" Thread Length, 0.185" Max Plunger Diam, 1 Lb Init to 8 Lb Final End Force, Knob Handle Plunger - Knurled Knob, 0.94" Body Length, 3/4" Length Under Head/Shoulder, 0.218" Plunger Projection
Item #: 04455556
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 3/8-16 |
| Thread Length (Decimal Inch) | 0.7500 |
| Plunger Type | Non-Locking |
| Knob Style | Knurled |
| Body Length (Decimal Inch) | 0.9400 |
| Length Under Head/Shoulder (Decimal Inch) | 0.7500 |
| Plunger Projection (Decimal Inch) | 0.2180 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1850 |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (Lb.) | 8.00 |
| Locking Element | Yes |
| Plunger Length (Decimal Inch) | 1.2500 |
| Head Diameter (Decimal Inch) | 0.7500 |
| Head Height (Decimal Inch) | 0.3100 |
| Head & Shoulder Height (Decimal Inch) | 0.5000 |
| Material | Stainless Steel |
| Plunger Diameter Tolerance (Decimal Inch) | +0.001/-0.000 |
