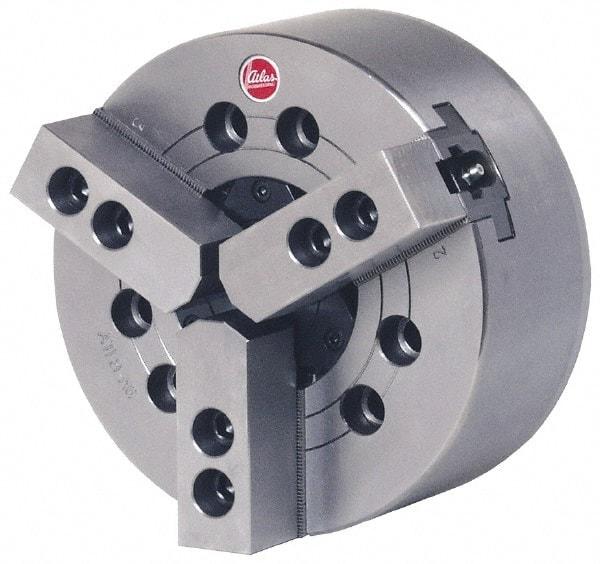

Atlas Workholding - 3 Jaws, 8" Chuck Diam, A2-6 Mount, 2.047" Through Hole, Drawbar, Hydraulic Power Lathe Chuck - 5,000 Lb Force per Jaw, 1.5mm x 60 Serrated Jaw Interface, 0.512" to 8.27" Jaw Capacity, 5,000 RPM
Item #: 04428801
Brand: Atlas Workholding
Model #: ATL8-A6
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (Inch) | 8 |
| Chuck Diameter (Decimal Inch) | 8.0000 |
| Number of Jaws | 3 |
| Mount | A2-6 |
| Through-Hole Diameter (Decimal Inch) | 2.0470 |
| Chuck Actuation Style | Drawbar |
| Operation Type | Hydraulic |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.5120 |
| Maximum Jaw Capacity (Decimal Inch) | 8.2700 |
| Jaw Stroke Diameter (Decimal Inch) | 0.2910 |
| Piston Stroke Length (Decimal Inch) | 0.6300 |
| Maximum Drawbar Pulling Force (lbf) | 7824.00 |
| Maximum Static Gripping Force (lbf) | 19332.00 |
| Force Per Jaw (Lb.) | 5000.00 |
| Maximum RPM | 5000 |
