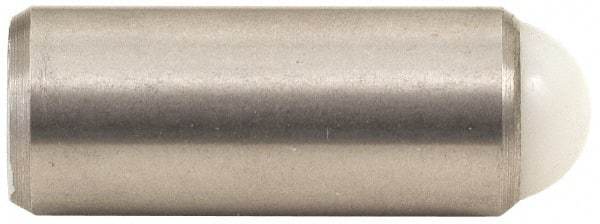

Gibraltar - 11/16" Body Length x 5/16" Body Diam, 4 Lb Init to 10 Lb Final End Force, Stainless Steel Press Fit Ball Plunger - 1/4" Ball Diam, 0.09" Max Ball Reach, +0.0010; +0.0020" Tolerance
Item #: 04394433
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Body Diameter (Decimal Inch) | 0.3120 |
| Body Length (Decimal Inch) | 0.6880 |
| Body Material | Stainless Steel |
| Ball Material | Delrin |
| Flange | No |
| Maximum Ball Reach (Decimal Inch) | 0.0900 |
| Initial End Force (Lb.) | 4.00 |
| Final End Force (Lb.) | 10.00 |
| Ball Diameter (Decimal Inch) | 0.2500 |
| Tolerance (Decimal Inch) | +0.0010; +0.0020 |
| Locking Element | No |
