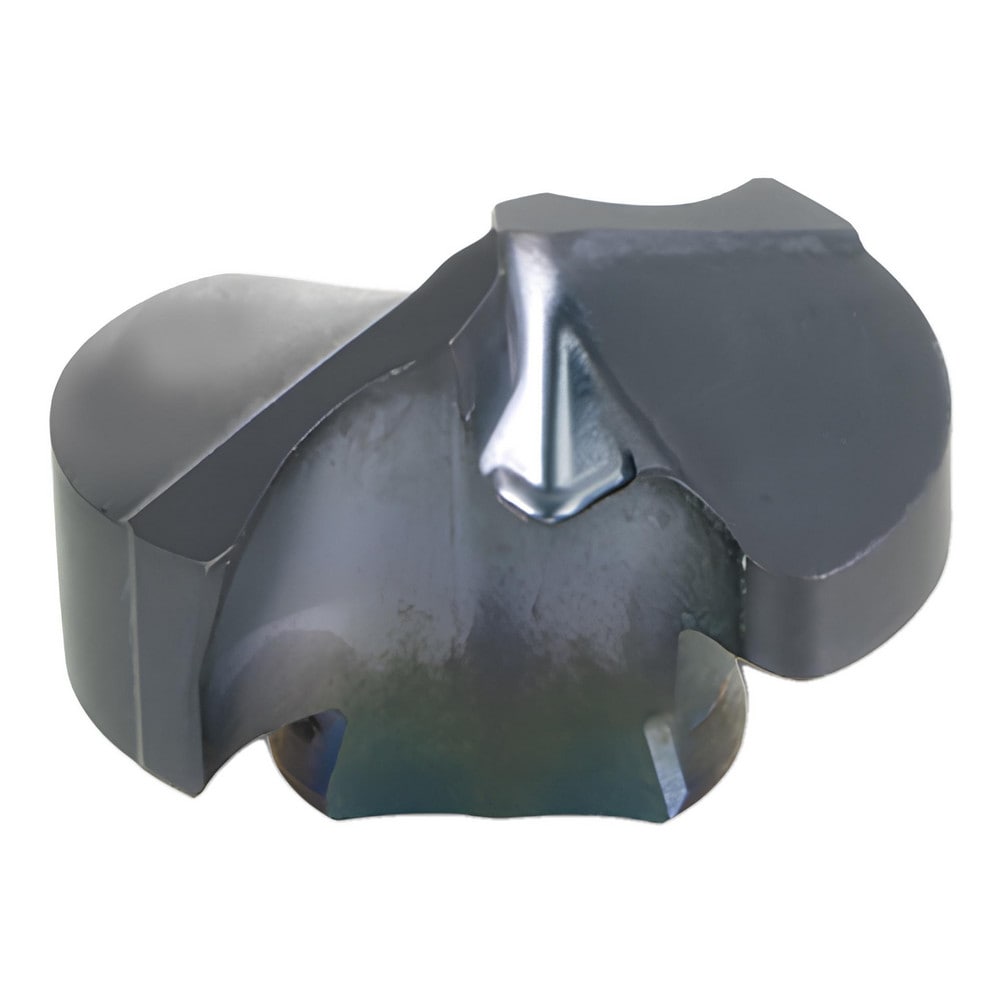

Brand: Ingersoll Cutting Tools / Part #: 5100218
Item #: 95381836
Brand: Ingersoll Cutting Tools
Model #: 5100218
Product Specifications
| Maximum Drill Diameter (mm) | 9.30 |
| Point Angle | 140.00 |
| Diameter (mm) | 9.3000 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2005 |
| Cutting Direction | Right Hand |
| Series | YAB |
| Coating Process | PVD |
| Insert Seat Size | 9 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Height (mm) | 4.3200 |
| Head Length (mm) | 4.32 |
| Cutting Diameter (mm) | 9.30 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Twist |
| ISO Number | NXXF36R02 IN2005 |
| Coolant Through | No |
| Flute Length (mm) | 2.62 |
| Point Type | Single Point |
| Overall Length/Projection (mm) | 4.32 |
| Spiral Type | Regular |
| Style | YAB |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
