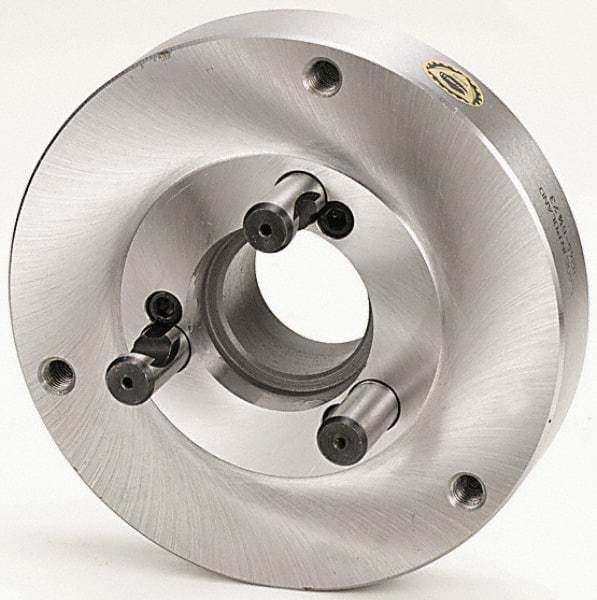

Buck Chuck Company - Adapter Back Plate for 10" Diam Self Centering Lathe Chucks - D1-8 Mount, 3-1/4" Through Hole Diam, 7.858mm ID, 10" OD, 1.534" Flange Height, Steel
Item #: 03955929
Brand: Buck Chuck Company
Model #: A10-D8
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Nominal Chuck Size | 10 |
| Spindle Nose Type | D Series |
| Mount | D1-8 |
| Chuck Compatibility | Self-Centering Chucks |
| Through-Hole Diameter (Decimal Inch) | 3.2500 |
| Chuck Diameter Compatibility (Inch) | 10 |
| Inside Diameter (Decimal Inch) | 7.8580 |
| Outside Diameter (Inch) | 10 |
| Outside Diameter (Decimal Inch) | 10.0000 |
| Flange Height (Decimal Inch) | 1.5340 |
| Material | Steel |
