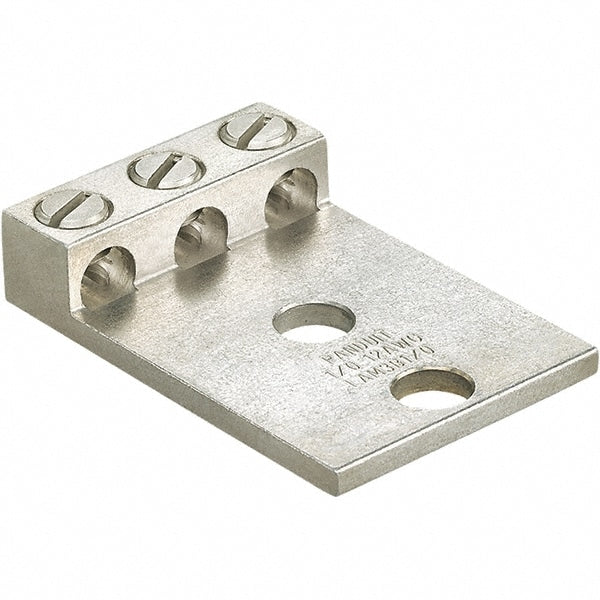

Brand: Panduit / Part #: LAM3B1/0-38-6Y
Item #: 46795332
Brand: Panduit
Model #: LAM3B1/0-38-6Y
Product Specifications
| Terminal Type | Square |
| Insulation Type | Non-Insulated |
| Connection Type | Lug |
| Compatible Wire Size (AWG) | 12 to 1/0 |
| Stud Size (Inch) | 3/8 |
| Contact Material | Aluminum |
| Contact Plating | TiN |
| Thickness (mm) | 6.35 |
| Thickness (Inch) | 1/4 |
| Ring Width (Inch) | 2 |
| Ring Width (mm) | 50.80 |
| Ring Width (Decimal Inch) | 2.0000 |
| Overall Length (mm) | 73.91 |
| Overall Length (Decimal Inch) | 2.9100 |
