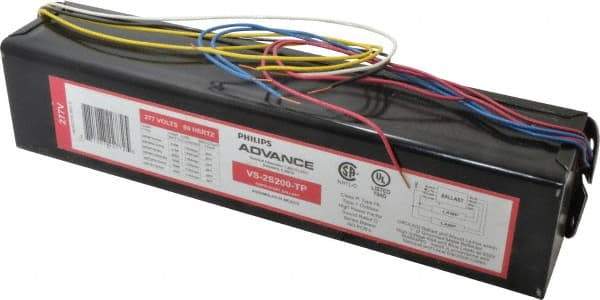

Philips Advance - 2 Lamp, 277 Volt, 1.40 to 1.65 Amp, 160 to 199, 200 or Greater Watt, Rapid Start, Magnetic, Nondimmable Fluorescent Ballast - 0.90, 0.96, 0.99 Ballast Factor, Thermal Protection, T10, T12 Lamp
Item #: 03750023
Brand: Philips Advance
Model #: VS2S200TPI
Exact Tooling IR#: 04
Features and Benefits
Rapid start ballasts turn on in 0.5-1.0 seconds without flicker. They typically operate 15,000-20,000 on/off cycles before failure.
| Product Specifications | |
|---|---|
| Lamp Type | T10; T12 |
| Lamp Wattage Range | 160-199; 200 or greater |
| Voltage | 277 |
| Number of Lamps | 2 |
| Lamp Starting Method | Rapid Start |
| Ballast Factor Range | Normal (0.75-0.99) |
| Dimmability | NonDimmable |
| Ballast Type | Magnetic |
| Lamp Wattage | 168; 185; 215 |
| Amperage Range | 1.40-1.65 |
| Ballast Factor | 0.90; 0.96; 0.99 |
| Minimum Starting Temperature (F) | -20; 60 |
| Total Harmonic Distortion (%) | <15 |
| Can Code | P (14.313 x 3.188 x 2.625) |
| Additional Information | Thermal Protection |
| Magnatek Part Number | 937-K-TCP |
