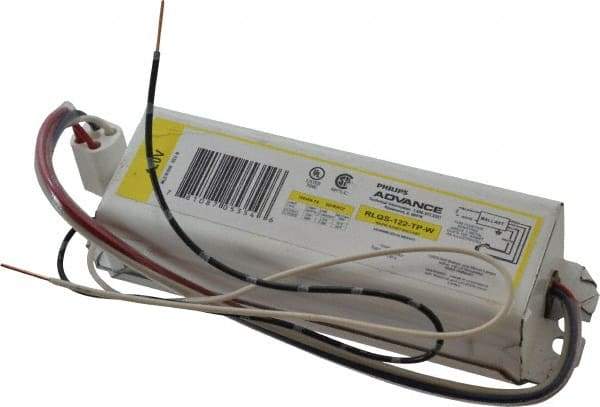

Philips Advance - 1 Lamp, 120 Volt, 0.53 to 0.56 Amp, 0 to 39 Watt, Rapid Start, Magnetic, Nondimmable Fluorescent Ballast - 0.75, 0.76 Ballast Factor, Thermal Protection, T9/Circline Lamp
Item #: 03749942
Brand: Philips Advance
Model #: RLQS122TPWI
Exact Tooling IR#: 04
Features and Benefits
Rapid start ballasts turn on in 0.5-1.0 seconds without flicker. They typically operate 15,000-20,000 on/off cycles before failure.
| Product Specifications | |
|---|---|
| Lamp Type | T9/Circline |
| Lamp Wattage Range | 0-39 |
| Voltage | 120 |
| Number of Lamps | 1 |
| Lamp Starting Method | Rapid Start |
| Ballast Factor Range | Low (0.50-0.74) |
| Dimmability | NonDimmable |
| Ballast Type | Magnetic |
| Lamp Wattage | 20; 22 |
| Amperage Range | 0.53-0.56 |
| Ballast Factor | 0.75; 0.76 |
| Minimum Starting Temperature (F) | 50 |
| Total Harmonic Distortion (%) | <10 |
| Can Code | L (6.5 x 1.938 x 1.375) |
| Additional Information | Thermal Protection |
| Magnatek Part Number | 547-RS-WS-TCP |
