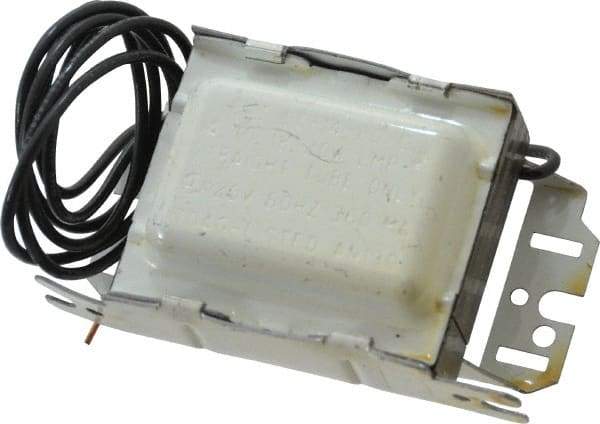

Philips Advance - 1 Lamp, 120 Volt, 0.33 to 0.39 Amp, 0 to 39 Watt, Preheat, Magnetic, Nondimmable Fluorescent Ballast - 0.92, 0.93, 0.97, 1.01, 1.08, 1.10 Ballast Factor, T8, T12 Lamp
Item #: 03749801
Brand: Philips Advance
Model #: LC1420CI
Exact Tooling IR#: 04
Features and Benefits
Preheat ballasts are used with either a starter or manual switch to establish a current through the ballast to the lamp. The preheat ballast will maintain the lamp current to the proper operating level once turned on.
| Product Specifications | |
|---|---|
| Lamp Type | T8; T12 |
| Lamp Wattage Range | 0-39 |
| Voltage | 120 |
| Number of Lamps | 1 |
| Lamp Starting Method | Preheat Ballast |
| Ballast Factor Range | Normal (0.75-0.99) & Normal/High (1.00-1.19) |
| Dimmability | NonDimmable |
| Ballast Type | Magnetic |
| Lamp Wattage | 14; 15; 18; 19; 20 |
| Amperage Range | 0.33-0.39 |
| Ballast Factor | 0.92; 0.93; 0.97; 1.01; 1.08; 1.10 |
| Minimum Starting Temperature (F) | 50 |
| Total Harmonic Distortion (%) | <10; <15 |
| Can Code | I (3.063 x 1.375 x 1.813) |
| Magnatek Part Number | 200-HZ |
