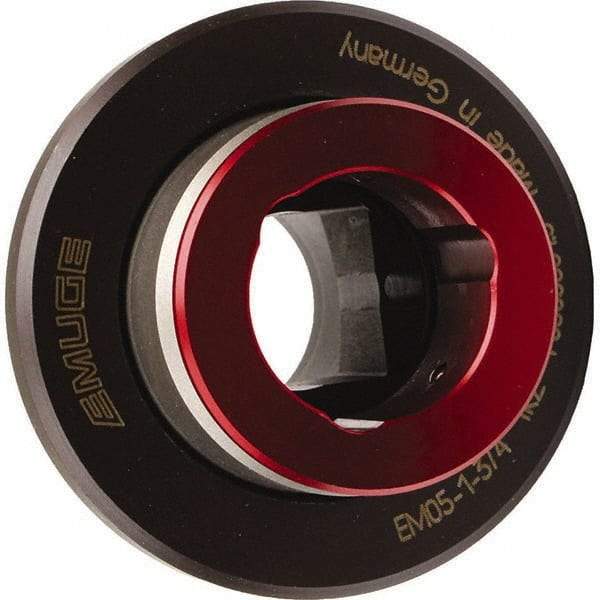

Emuge - 0.7087" Tap Shank Diam, 0.5709" Tap Square Size, #5 Tapping Adapter - 1.6535" Projection, 3.4646" Tap Depth, 4.1339" OAL, 2.3622" Shank OD, Through Coolant, Series EM05
Item #: 03554334
Brand: Emuge
Model #: F0565115.5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Adapter Size | 5 |
| Tap Shank Diameter (mm) | 18.00 |
| Tap Shank Diameter (Decimal Inch) | 0.7087 |
| Tap Square Size (mm) | 14.50 |
| Tap Square Size (Decimal Inch) | 0.5709 |
| Quick Change | Yes |
| Projection (mm) | 42.00 |
| Projection (Decimal Inch) | 1.6535 |
| Tap Depth (mm) | 88.00 |
| Tap Depth (Decimal Inch) | 3.4646 |
| Series | EM05 |
| Overall Length (mm) | 105.00 |
| Overall Length (Decimal Inch) | 4.1339 |
| Flange Diameter (mm) | 92.00 |
| Flange Diameter (Decimal Inch) | 3.6221 |
| Outside Shank Diameter (mm) | 60.00 |
| Outside Shank Diameter (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| PSC Code | 5136 |
