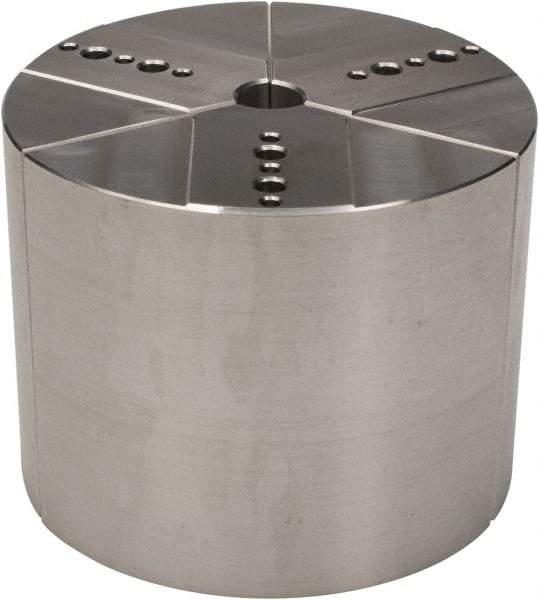

Northfield - 4" & Up Chuck Capacity, Northfield Air Style Attachment, Round Soft Lathe Chuck Jaw - 3 Jaws, Aluminum, 3.92" Wide x 3" High
Item #: 03299344
Brand: Northfield
Model #: AL-3-4-3
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Jaw Type | Round |
| Material | Aluminum |
| Jaw Interface Type | Northfield Air Style |
| Maximum Compatible Chuck Diameter (Inch) | 4 |
| Overall Height (mm) | 76.20 |
| Overall Height (Inch) | 3 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 99.57 |
| Overall Width/Diameter (Decimal Inch) | 3.9200 |
| Maximum Internal Chucking Diameter (mm) | 95.25 |
| Maximum Internal Chucking Diameter (Decimal Inch) | 3.7500 |
| Minimum Internal Chucking Diameter (Decimal Inch) | 0.7500 |
| Minimum Internal Chucking Diameter (mm) | 19.05 |
| Maximum External Chucking Diameter (mm) | 95.25 |
| Maximum External Chucking Diameter (Decimal Inch) | 3.7500 |
| Minimum External Chucking Diameter (mm) | 19.05 |
| Minimum External Chucking Diameter (Decimal Inch) | 0.7500 |
