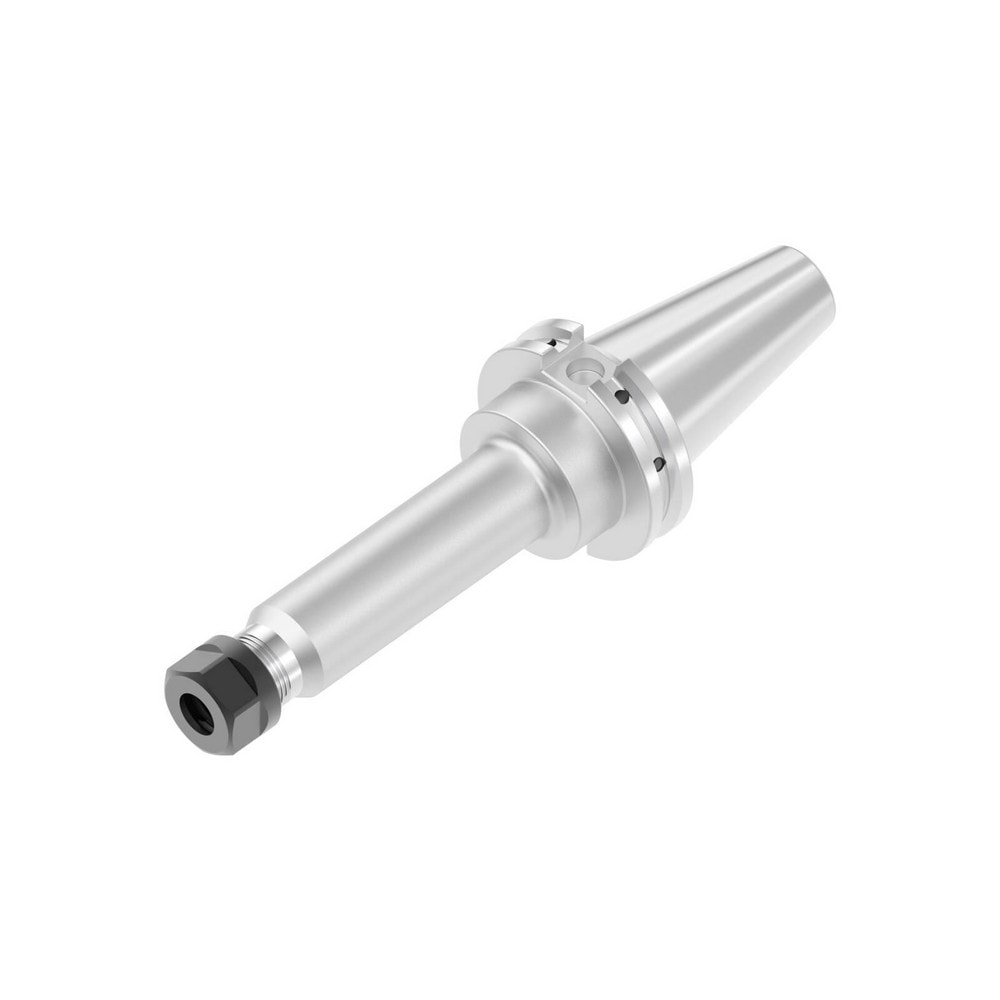

Collet Chuck: ER Collet, Taper Shank
Item #: 87885026
Brand: Seco
Model #: 10229696
Product Specifications
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper |
| Taper Size | CAT40 ADB |
| Projection (Decimal Inch) | 6.0000 |
| Projection (Inch) | 6 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 8.6870 |
| Actuator Type | Wrench |
| Dual Contact | No |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.1024 |
| Shank Diameter (Inch) | 1-3/4 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Shank Length (Inch) | 2-11/16 |
| Shank Length (Decimal Inch) | 2.6875 |
| Material | Steel |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.1024 |
| Nose Type | Plain |
| Type | Collet Chuck |
| Manufacturer's Part Number | CAT40ADB-ER16-6.000 |
| UNSPSC Code | 27112808 |
| Head Length (Decimal Inch) | 5.2500 |
| Balanced To Rpm | 15000 |
| Quick Change | No |
| For Use With | ER Collets |
| Country of Origin | France |
