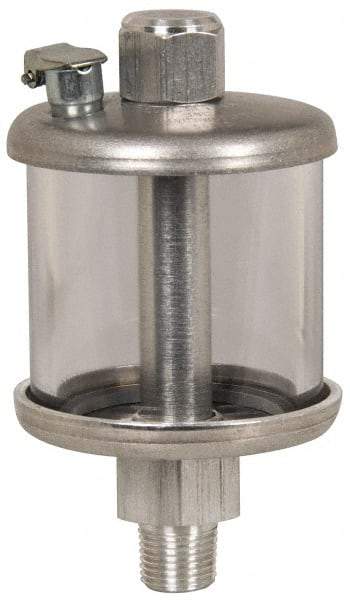

LDI Industries - 1 Outlet, Polymer Bowl, 354.9 mL No Flow Control Oil Reservoir - 1/2 NPTF Outlet, 3" Diam x 6-5/8" High, 60°C Max
Item #: 03239753
Brand: LDI Industries
Model #: R109-04
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | No Flow Control Oil Reservoir |
| Number of Outlets | 1 |
| Bowl Material | Polymer |
| Capacity Range | Smaller than 16 oz. |
| Mount Type | Direct Mount |
| Outlet Thread Size | 1/2 |
| Outlet Thread Type | NPTF |
| Capacity (oz.) | 12.00 |
| Capacity (mL) | 354.90 |
| Diameter (mm) | 76.20 |
| Diameter (Decimal Inch) | 3.0000 |
| Height (mm) | 168.28 |
| Height (Inch) | 6-5/8 |
| Height (Decimal Inch) | 6.6250 |
| Maximum Operating Temperature (F) | 140.00 |
| Maximum Operating Temperature (C) | 60.00 |
| Components Material | Aluminum |
