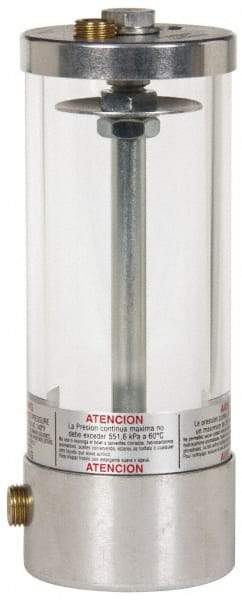

LDI Industries - 1 Outlet, Polymer Bowl, 770.19 Cu. cm Air-Operated Oil Reservoir - 3/8 NPTF Outlet, 3-1/2" Diam x 8-15/16" High, 60°C Max
Item #: 03239530
Brand: LDI Industries
Model #: A/OR2053-3
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Air-Operated Oil Reservoir |
| Number of Outlets | 1 |
| Bowl Material | Polymer |
| Capacity Range | 16 oz. - 31.9 oz. |
| Mount Type | Direct Mount |
| Outlet Thread Size | 3/8 |
| Outlet Thread Type | NPTF |
| Capacity (Cu. In.) | 47.00 |
| Capacity (cc) | 770.19 |
| Diameter (mm) | 88.90 |
| Diameter (Inch) | 3-1/2 |
| Diameter (Decimal Inch) | 3.5000 |
| Height (mm) | 227.01 |
| Height (Inch) | 8-15/16 |
| Height (Decimal Inch) | 8.9375 |
| Maximum Operating Temperature (F) | 140.00 |
| Maximum Operating Temperature (C) | 60.00 |
| Components Material | Aluminum/Steel |
