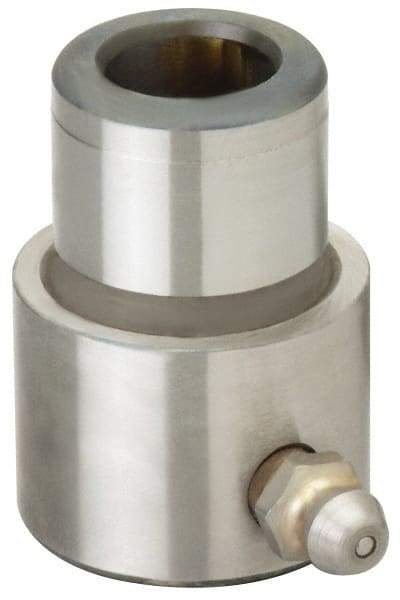

Dayton Lamina - 1/2" ID x 1-1/2" OAL, Steel, Die & Mold Shoulder Bushing - Short Shoulder, 1-1/16" Bottom OD, 13/16" Top OD, 1-1/16" Collar OD, 11/16" Above Collar
Item #: 03224235
Brand: Dayton Lamina
Model #: 6-04-61
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Material | Steel |
| Inside Diameter (Inch) | 1/2 |
| Inside Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Body Type | Short Shoulder |
| Bottom Outside Diameter (Decimal Inch) | 1.0620 |
| Top Outside Diameter (Inch) | 13/16 |
| Attachment Method | Press-Fit |
| Lubrication Type | Non-Self Lubricating |
| Bushing Type | Friction |
| Collar Outside Diameter (Decimal Inch) | 1.0620 |
| Length Above Collar (Inch) | 11/16 |
| Collar Height (Inch) | 13/16 |
