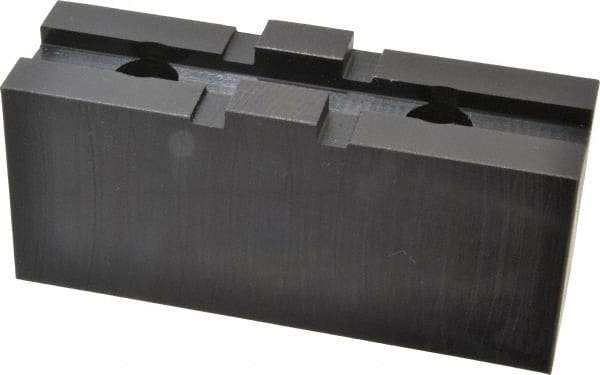

Bison - 12 to 12-1/2" Chuck Capacity, Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - 1 Jaw, Steel, 2-1/2" Btw Mount Hole Ctrs, 4-11/16" Long x 1-29/64" Wide x 2.165" High, 1/2" Groove
Item #: 03192804
Brand: Bison
Model #: 7-884-312*
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 12-1/2 |
| Minimum Compatible Chuck Diameter (Inch) | 12 |
| Overall Height (Decimal Inch) | 2.1650 |
| Groove Width (Decimal Inch) | 0.5000 |
| Distance Between Mount Hole Centers (Inch) | 2-1/2 |
| Jaw End Shape | Square |
| Fastener Size (Inch) | 1/2 |
| Number of Jaws | 1 |
| Overall Width/Diameter (Inch) | 1-29/64 |
| Overall Width/Diameter (Decimal Inch) | 1.4531 |
| Overall Length (Inch) | 4-11/16 |
| Overall Length (Decimal Inch) | 4.7188 |
