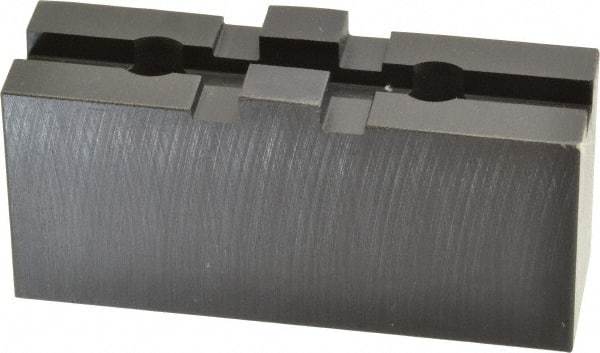

Bison - 8" Chuck Capacity, Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - 1 Jaw, Steel, 1-3/4" Btw Mount Hole Ctrs, 3-1/2" Long x 1-1/16" Wide x 1.713" High, 5/16" Groove
Item #: 03192788
Brand: Bison
Model #: 7-884-308
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 8 |
| Minimum Compatible Chuck Diameter (Inch) | 8 |
| Overall Height (Decimal Inch) | 1.7130 |
| Groove Width (Decimal Inch) | 0.3129 |
| Distance Between Mount Hole Centers (Inch) | 1-3/4 |
| Jaw End Shape | Square |
| Fastener Size (Inch) | 3/8 |
| Number of Jaws | 1 |
| Overall Width/Diameter (Inch) | 1-1/16 |
| Overall Width/Diameter (Decimal Inch) | 1.0625 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5469 |
