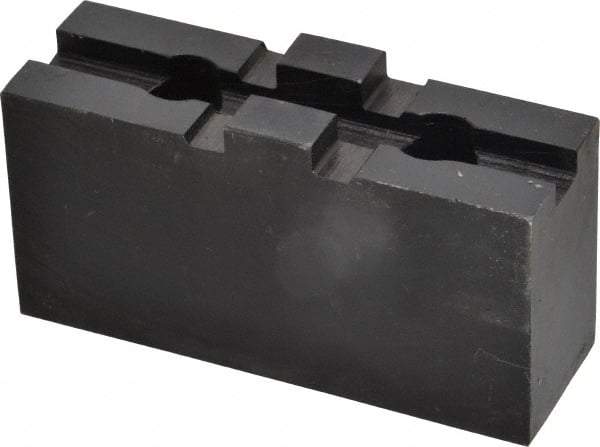

Bison - 6 to 6-1/4" Chuck Capacity, Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - 1 Jaw, Steel, 1-1/2" Btw Mount Hole Ctrs, 3-1/16" Long x 1" Wide x 1.634" High, 5/16" Groove
Item #: 03192770
Brand: Bison
Model #: 7-884-306
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 6-1/4 |
| Minimum Compatible Chuck Diameter (Inch) | 6 |
| Overall Height (Decimal Inch) | 1.6340 |
| Groove Width (Decimal Inch) | 0.3129 |
| Distance Between Mount Hole Centers (Inch) | 1-1/2 |
| Jaw End Shape | Square |
| Fastener Size (Inch) | 3/8 |
| Number of Jaws | 1 |
| Overall Width/Diameter (Inch) | 1 |
| Overall Width/Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 3-1/16 |
| Overall Length (Decimal Inch) | 3.0781 |
