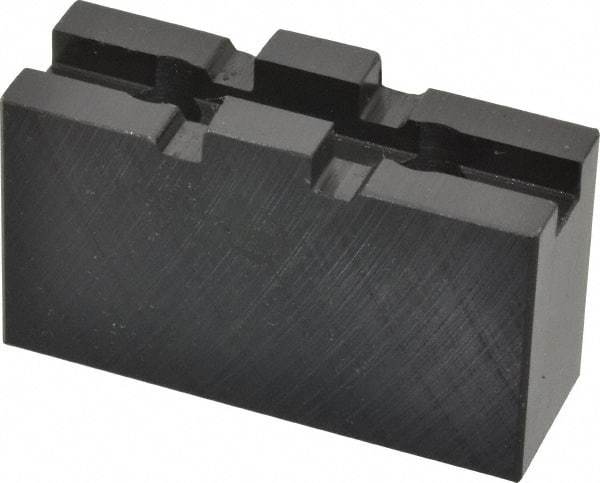

Bison - 5" Chuck Capacity, Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - 1 Jaw, Steel, 1-1/4" Btw Mount Hole Ctrs, 2-1/2" Long x 7/8" Wide x 1.52" High, 5/16" Groove
Item #: 03192762
Brand: Bison
Model #: 7-884-305
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 5 |
| Minimum Compatible Chuck Diameter (Inch) | 5 |
| Overall Height (Decimal Inch) | 1.5200 |
| Groove Width (Decimal Inch) | 0.3129 |
| Distance Between Mount Hole Centers (Inch) | 1-1/4 |
| Jaw End Shape | Square |
| Fastener Size (Inch) | 5/16 |
| Number of Jaws | 1 |
| Overall Width/Diameter (Inch) | 7/8 |
| Overall Width/Diameter (Decimal Inch) | 0.8594 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5156 |
