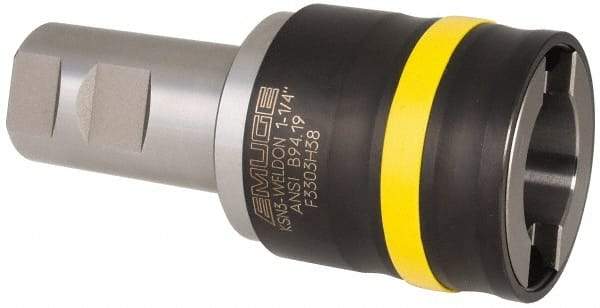

Emuge - 1-1/4" Straight Shank Diam Tension & Compression Tapping Chuck - 1/4 to 7/8" Tap Capacity, 2.4803" Projection, Quick Change, Through Coolant
Item #: 02777142
Brand: Emuge
Model #: F3303H38
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Minimum Tap Capacity (mm) | M4.5 |
| Minimum Tap Capacity (Inch) | 1/4 |
| Maximum Tap Capacity (Inch) | 7/8 |
| Maximum Tap Capacity (mm) | M24 |
| Projection (Decimal Inch) | 2.4803 |
| Quick Change | Yes |
| Hole Diameter (Decimal Inch) | 1.2205 |
| Collet System | EM Tap |
| Collet Series | EM 03 |
| Holder Series | KSN3 |
| Nose Diameter (Decimal Inch) | 2.0866 |
| Tension (Decimal Inch) | 0.5906 |
| Compression (Decimal Inch) | 0.3346 |
| Overall Length (Decimal Inch) | 4.7638 |
| Through Coolant | Yes |
