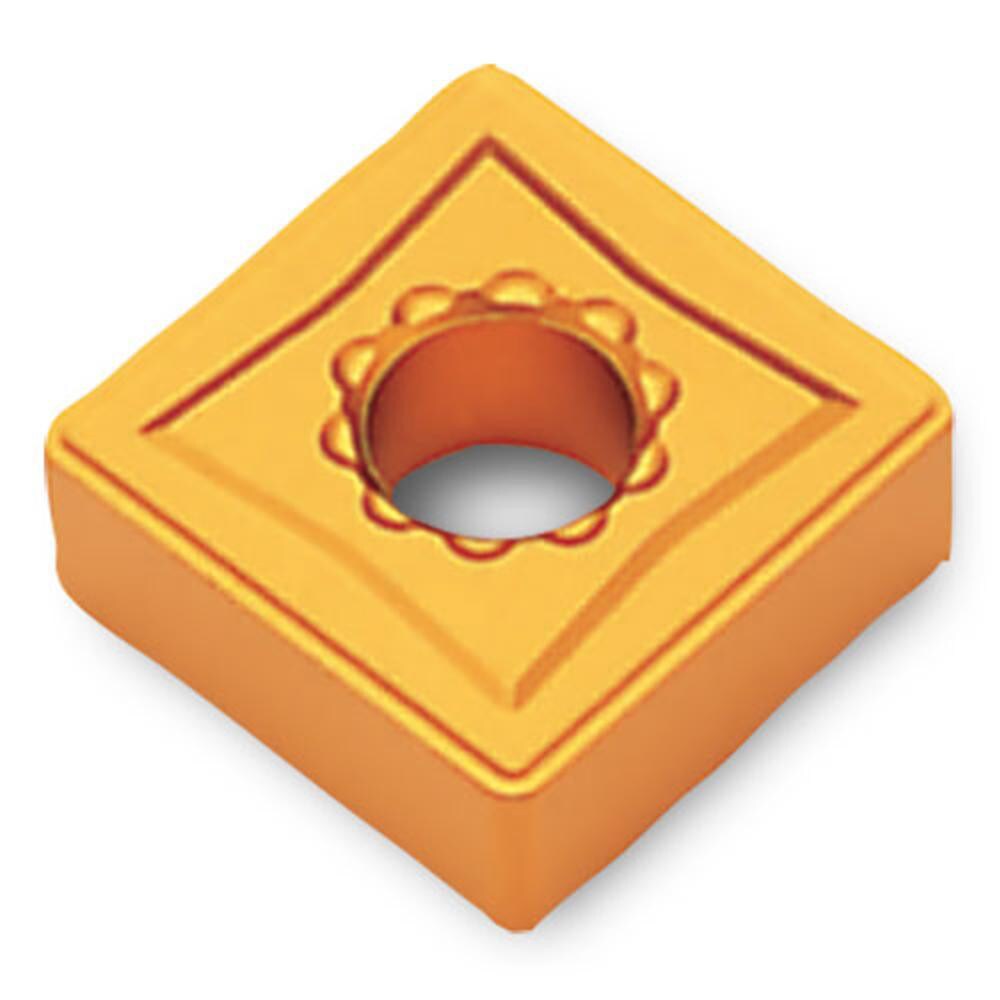

Turning Insert: SNMG643RT TT5080, Carbide
Item #: 63877740
Brand: Ingersoll Cutting Tools
Model #: 5523087
Product Specifications
| ANSI Insert Code | SNMG643 |
| ISO Insert Code | SNMG190612 |
| Relief Angle | 0 |
| Insert Style | SNMG |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 90 |
| Manufacturer Grade | TT5080 |
| Coating/Finish | AlTiN; TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | SNMG |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.7500 |
| Insert Length (Inch) | 3/4 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium |
| Primary Workpiece Material Code | S; M |
| Iso Code | SNMG190612RT TT5080 |
| Chip Breaker | RT |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| ANSI Size Code | 643 |
| ISO Size Code | 190612 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 643 |
| ANSI Insert Code | SNMG643 |
| ISO Insert Code | SNMG190612 |
| Relief Angle | 0 |
| Insert Style | SNMG |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 90 |
| Manufacturer Grade | TT5080 |
| Coating/Finish | AlTiN; TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | SNMG |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.7500 |
| Insert Length (Inch) | 3/4 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium |
| Primary Workpiece Material Code | S; M |
| Iso Code | SNMG190612RT TT5080 |
| Chip Breaker | RT |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| ANSI Size Code | 643 |
| ISO Size Code | 190612 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 643 |
| MSC Part # | 63877740 |
| Mfr Part # | 5523087 |
