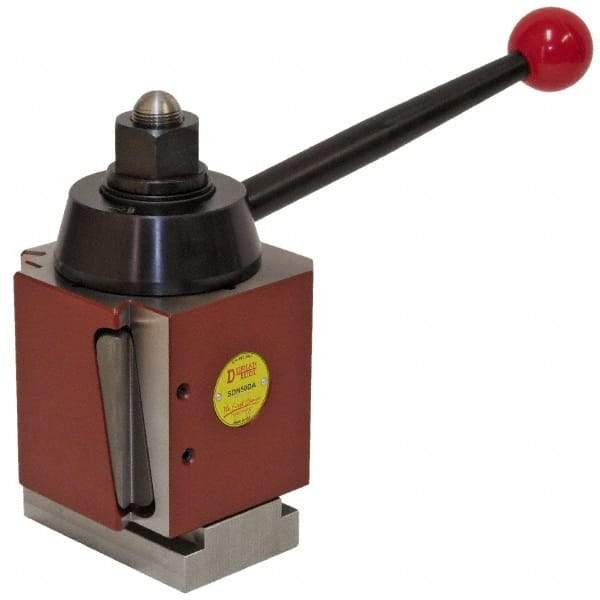

Dorian Tool - 17 to 32 Inch Lathe Swing, Wedge Type Quick Change Tool Post - 7-3/8 Inch Tool Post Height, Series DA, 2 to 3-3/8 Inch Centerline Height Range, 8-1/2 Inch Overall Height
Item #: 02737518
Brand: Dorian Tool
Model #: 73310101008
Exact Tooling IR#: 04
Features and Benefits
The clamping mechanism is a wedge that pushes out from the side of the dovetail when the clamping lever on the tool post is engaged.
| Product Specifications | |
|---|---|
| Type | Quick Change Tool Post - Wedge Type |
| Series | DA |
| Lathe Swing (mm) | 430 to 810 |
| Lathe Swing (Inch) | 17 to 32 |
| Through Coolant | No |
| Base Width (mm) | 127.00 |
| Base Width (Inch) | 5 |
| Base Width (Decimal Inch) | 5.0000 |
| Tool Post Height (Decimal Inch) | 7.3750 |
| Tool Post Height (mm) | 188.85 |
| Centerline to Handle Edge (Inch) | 11 |
| Bolt Hole Diameter (mm) | 25.40 |
| Bolt Hole Diameter (Inch) | 1 |
| Bolt Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Inch) | 8-1/2 |
| Centerline to Body (Inch) | 2-1/2 |
| Minimum Centerline Height (mm) | 50.80 |
| Minimum Centerline Height (Inch) | 2 |
| Minimum Centerline Height (Decimal Inch) | 2.0000 |
| Maximum Centerline Height (Inch) | 3-3/8 |
| Maximum Centerline Height (Decimal Inch) | 3.5781 |
| Maximum Centerline Height (mm) | 90.88 |
| Body Height (mm) | 117.48 |
| Body Height (Inch) | 4-5/8 |
| Body Height (Decimal Inch) | 4.6250 |
| Repeatability (Decimal Inch) | 0.000100 |
| Includes | Machinable Blank T-Nut or Bolt Shaft |
