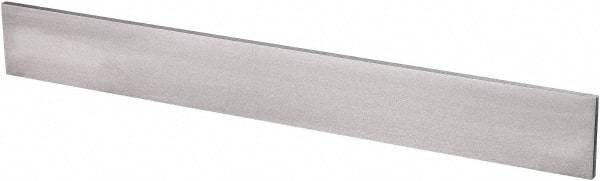

SPI - 96 Inch Long x 3-5/32 Inch Wide x 19/32 Inch Thick, Square Edge Straightedge - 45 micro m Edge Flatness, Spring Steel, 91 micro m Parallelism
Item #: 02674075
Brand: SPI
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Square Edge |
| Overall Length (Inch) | 96 |
| Overall Width (mm) | 80.17 |
| Overall Width (Inch) | 3-5/32 |
| Overall Thickness (mm) | 15.08 |
| Overall Thickness (Inch) | 19/32 |
| Edge Flatness (Decimal Inch) | 0.0018 |
| Edge Flatness (micro m) | 46.00 |
| Parallelism (Decimal Inch) | 0.0036 |
| Parallelism (micro m) | 92.00 |
| Material | Spring Steel |
| PSC Code | 5210 |
