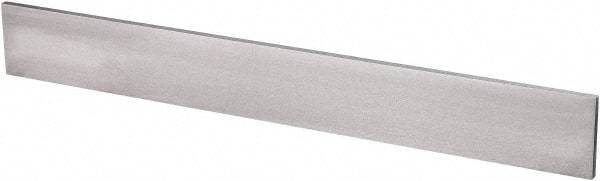

SPI - 120 Inch Long x 3-1/4 Inch Wide x 19/32 Inch Thick, Square Edge Straightedge - 54 micro m Edge Flatness, Spring Steel, 110 micro m Parallelism
Item #: 02674000
Brand: SPI
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Square Edge |
| Overall Length (Inch) | 120 |
| Overall Width (mm) | 82.55 |
| Overall Width (Inch) | 3-1/4 |
| Overall Thickness (mm) | 15.08 |
| Overall Thickness (Inch) | 19/32 |
| Edge Flatness (Decimal Inch) | 0.0021 |
| Edge Flatness (micro m) | 54.00 |
| Parallelism (Decimal Inch) | 0.0043 |
| Parallelism (micro m) | 108.00 |
| Material | Spring Steel |
| PSC Code | 5210 |
