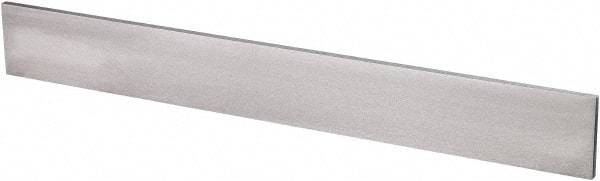

SPI - 72 Inch Long x 3-5/32 Inch Wide x 3/8 Inch Thick, Beveled Edge Straightedge - 28 micro m Edge Flatness, Spring Steel, 74 micro m Parallelism, 1 Beveled Edge
Item #: 02673978
Brand: SPI
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Beveled Edge |
| Overall Length (mm) | 1828.80 |
| Overall Length (Inch) | 72 |
| Overall Width (mm) | 80.17 |
| Overall Width (Inch) | 3-5/32 |
| Overall Thickness (mm) | 9.53 |
| Overall Thickness (Inch) | 3/8 |
| Number of Beveled Edges | 1 |
| Edge Flatness (Decimal Inch) | 0.0015 |
| Edge Flatness (micro m) | 30.00 |
| Parallelism (Decimal Inch) | 0.0029 |
| Parallelism (micro m) | 60.00 |
| Material | Spring Steel |
| PSC Code | 5210 |
