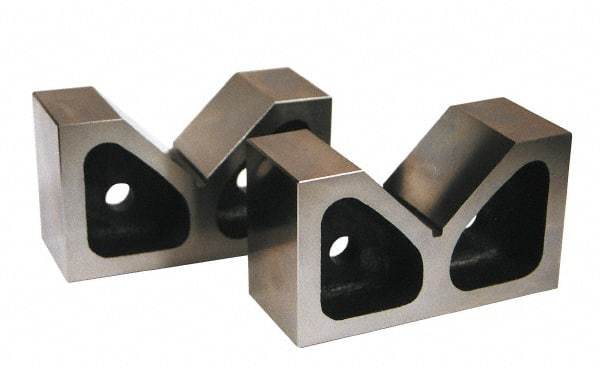

SPI - 5-1/8" Max Capacity, 90° Angle, Cast Iron V-Block - 12" Long x 6" Wide x 8" High, Sold as Matched Pair
Item #: 02662831
Brand: SPI
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Matched Pair |
| Overall Length (mm) | 304.80 |
| Overall Length (Inch) | 12 |
| Overall Width (mm) | 152.40 |
| Overall Width (Inch) | 6 |
| Overall Height (mm) | 203.20 |
| Overall Height (Inch) | 8 |
| V Angle | 90.00 |
| Minimum Capacity of V (Inch) | 5-1/8 |
| Maximum Capacity of V (mm) | 130.18 |
| Maximum Capacity of V (Inch) | 5-1/8 |
| Material | Cast Iron |
| Squareness Per 1 Inch (Decimal Inch) | 0.0012 |
| Squareness Per 1 Inch (micro m) | 30.00 |
| V Parallelism (Decimal Inch) | 0.0002 |
| V Parallelism (micro m) | 30.00 |
| Magnetic | No |
