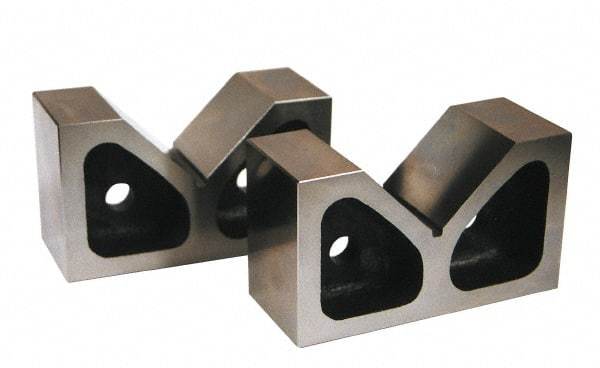

SPI - 5" Max Capacity, 90° Angle, Cast Iron V-Block - 10" Long x 5" Wide x 6-1/2" High, Sold as Matched Pair
Item #: 02662823
Brand: SPI
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Matched Pair |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Overall Width (mm) | 127.00 |
| Overall Width (Inch) | 5 |
| Overall Height (mm) | 165.10 |
| Overall Height (Inch) | 6-1/2 |
| V Angle | 90.00 |
| Minimum Capacity of V (Inch) | 5 |
| Maximum Capacity of V (mm) | 127.00 |
| Maximum Capacity of V (Inch) | 5 |
| Material | Cast Iron |
| Squareness Per 1 Inch (Decimal Inch) | 0.0012 |
| Squareness Per 1 Inch (micro m) | 30.00 |
| V Parallelism (Decimal Inch) | 0.0002 |
| V Parallelism (micro m) | 30.00 |
| Magnetic | No |
