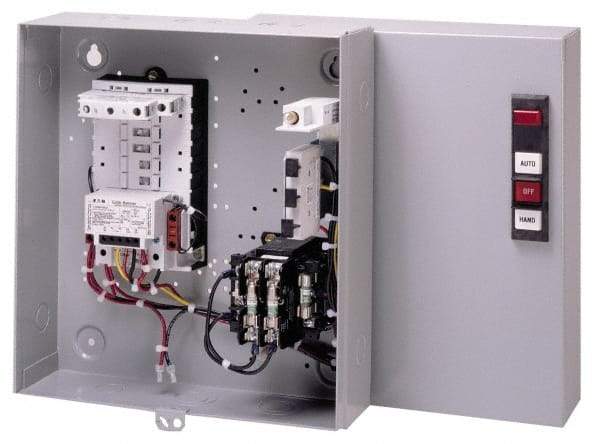

Eaton Cutler-Hammer - Lighting Contactors Contactor Type: Mechanically Held NEMA Enclosure Rating: 1
Item #: 02300580
Brand: Eaton Cutler-Hammer
Model #: ECC04C1ABA
Exact Tooling IR#: 04
Product Specifications
Lighting Contactors; Contactor Type: Mechanically Held ; NEMA Enclosure Rating: 1 ; Amperage: 30 (Tungsten) ; Control Circuit Voltage: 110 VAC @ 50 Hz; 120 VAC @ 60 Hz ; Number of Poles: 12 ; Overall Height (mm): 338.10
| Contactor Type | Mechanically Held |
| NEMA Enclosure Rating | 1 |
| Amperage | 30 (Tungsten) |
| Control Circuit Voltage | 110 VAC @ 50 Hz; 120 VAC @ 60 Hz |
| Number of Poles | 12 |
| Overall Height (mm) | 338.10 |
| Overall Height (Decimal Inch) | 13.3100 |
| Overall Width (mm) | 249.90 |
| Overall Width (Decimal Inch) | 9.8400 |
| Overall Depth (mm) | 170.20 |
| Overall Depth (Decimal Inch) | 6.7000 |
| Standards Met | UL Listed |
