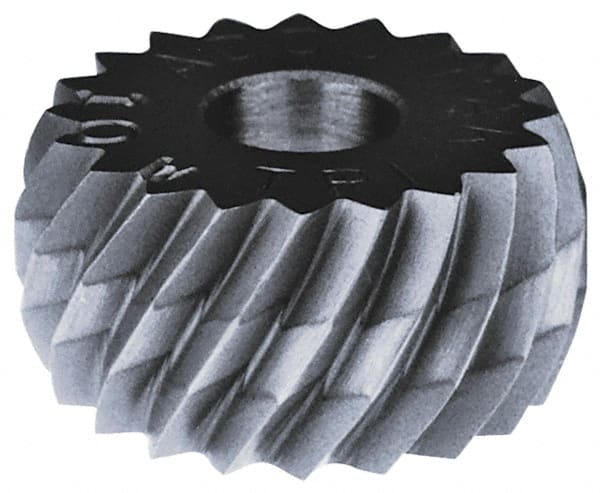

Convex Knurl Wheel: 1-1/4″ Dia, 90 ° Tooth Angle, 16 TPI, Diagonal, Cobalt 1/2″ Face Width, 1/2″ Hole, 30 ° Helix, Series PHV

Convex Knurl Wheel: 1-1/4″ Dia, 90 ° Tooth Angle, 16 TPI, Diagonal, Cobalt 1/2″ Face Width, 1/2″ Hole, 30 ° Helix, Series PHV


Item #: 02295392
Brand: Made in USA
Model #: PHRV216

Product Specifications

Knurl Shape Convex
Tooth Pattern Diagonal
Pattern Right-Hand Diagonal
Form Or Cut Type Form
Material Cobalt
Knurl Diameter 31.75
Knurl Diameter (Decimal Inch) 1.2500
Knurl Diameter (Inch) 1-1/4
Face Width (mm) 12.70
Face Width (Inch) 1/2
Hole Diameter (Inch) 1/2
Hole Diameter (Decimal Inch) 0.5000
Hole Diameter (Mm) ( - 0 Decimals) 12.70
Pitch System Circular
Pitch (mm) 1.59
Pitch (TPI) 16
Included Tooth Angle 90
Finish TiN
Helix Angle 30
Knurl Series PHV
$110.17
