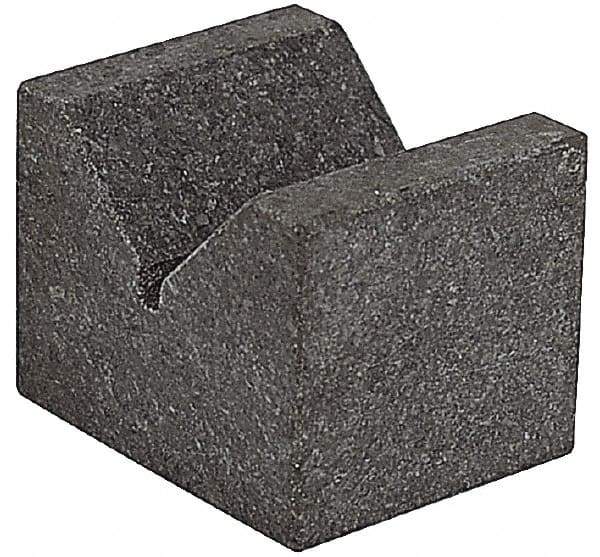

SPI - 90° Angle, Black Granite V-Block - 2-1/2" Long x 2" Wide x 2" High, Sold as Matched Pair
Item #: 01940378
Brand: SPI
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Matched Pair |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Width (Inch) | 2 |
| Overall Height (Inch) | 2 |
| V Angle | 90.00 |
| Material | Black Granite |
| Accuracy (Decimal Inch) | 0.000010 |
| Magnetic | No |
