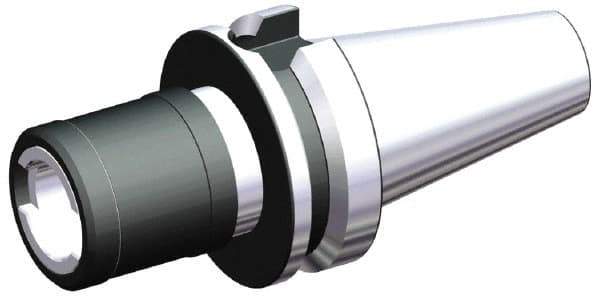

Kennametal - BT50 Taper Shank Tension & Compression Tapping Chuck - 13/16 to 1-3/8" Tap Capacity, 141mm Projection, Size 3 Adapter
Item #: 01704071
Brand: Kennametal
Model #: 1135816
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Minimum Tap Capacity (mm) | M14.0 |
| Minimum Tap Capacity (Inch) | 13/16 |
| Maximum Tap Capacity (Inch) | 1-3/8 |
| Maximum Tap Capacity (mm) | M27 |
| Projection (mm) | 141.00 |
| Quick Change | No |
| Hole Diameter (mm) | 48.00 |
| Adapter Size | 3 |
| Nose Diameter (mm) | 78.00 |
| Tension (mm) | 20.00 |
| Compression (mm) | 20.00 |
| Through Coolant | No |
