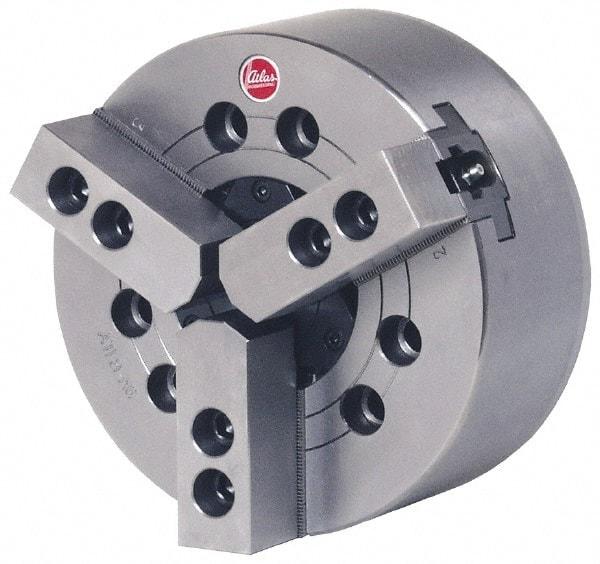

Atlas Workholding - 3 Jaws, 10" Chuck Diam, A2-6 Mount, 2.952" Through Hole, Drawbar, Hydraulic Power Lathe Chuck - 24,420 Lb Force per Jaw, 1.5mm x 60 Serrated Jaw Interface, 1.22" to 10" Jaw Capacity, 4,200 RPM
Item #: 01562321
Brand: Atlas Workholding
Model #: ATL10-A6
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (Inch) | 10 |
| Chuck Diameter (Decimal Inch) | 10.0000 |
| Number of Jaws | 3 |
| Mount | A2-6 |
| Through-Hole Diameter (Decimal Inch) | 2.9520 |
| Chuck Actuation Style | Drawbar |
| Operation Type | Hydraulic |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 1.2200 |
| Maximum Jaw Capacity (Decimal Inch) | 10.0000 |
| Jaw Stroke Diameter (Decimal Inch) | 0.3460 |
| Piston Stroke Length (Decimal Inch) | 0.7480 |
| Maximum Drawbar Pulling Force (lbf) | 9667.00 |
| Maximum Static Gripping Force (lbf) | 24953.00 |
| Force Per Jaw (Lb.) | 24420.00 |
| Maximum RPM | 4200 |
