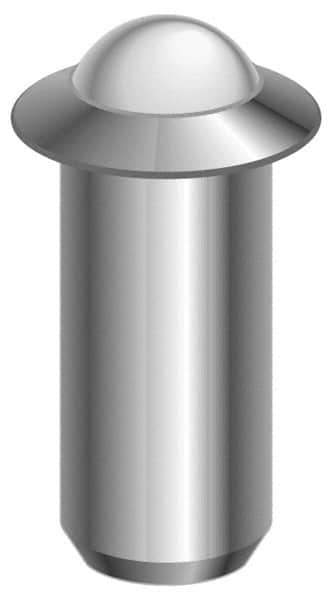

Vlier - 1/4" Body Length x 1/8" Body Diam, 0.4 Lb Init to 1.3 Lb Final End Force, Stainless Steel Press Fit Ball Plunger - 3/32" Ball Diam, 0.035" Max Ball Reach, 0.032" Flange Thickness
Item #: 01360858
Brand: Vlier
Model #: SPFB47
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Body Diameter (Decimal Inch) | 0.1250 |
| Body Length (Decimal Inch) | 0.2520 |
| Body Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Flange | Yes |
| Maximum Ball Reach (Decimal Inch) | 0.0350 |
| Initial End Force (Lb.) | 0.40 |
| Final End Force (Lb.) | 1.30 |
| Length Under Flange (Decimal Inch) | 0.2520 |
| Flange Diameter (Decimal Inch) | 0.1870 |
| Flange Thickness (Decimal Inch) | 0.0320 |
| Ball Diameter (Decimal Inch) | 0.0940 |
| Finish/Coating | Passivate |
| Locking Element | No |
