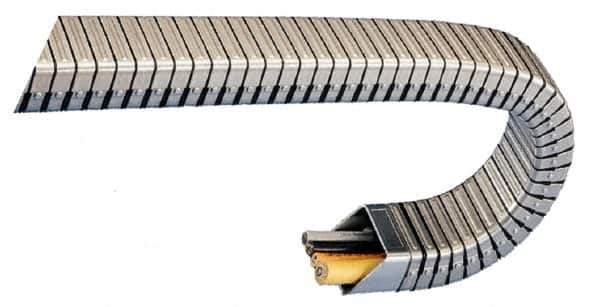

KabelSchlepp - 3 Ft. Long, Stainless Steel, Enclosed Cable and Hose Carrier - 3.94 Inch Inside Width x 2.76 Inch Inside Height, 5 Inch Outside Width x 3.39 Inch Outside Height, 7.87 Inch Bend Radius
Item #: 01278530
Brand: KabelSchlepp
Model #: 120R200X3FTW/MB
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Access Type | Enclosed |
| Overall Length (Feet) | 3 |
| Inside Height (Decimal Inch) | 2.7600 |
| Inside Height (mm) | 70 |
| Inside Width (mm) | 100 |
| Inside Width (Decimal Inch) | 3.9400 |
| Outside Height (mm) | 86 |
| Outside Height (Decimal Inch) | 3.3900 |
| Outside Width (mm) | 127 |
| Outside Width (Decimal Inch) | 5 |
| Bend Radius (mm) | 200 |
| Bend Radius (Decimal Inch) | 7.8700 |
| Number of Sections | 100 |
| Link to Link Pitch (mm) | 25 |
| Link to Link Pitch (Decimal Inch) | 0.9800 |
| Material | Stainless Steel |
| Standards Met | TUV Approved w/ 2 PfG 1036/10.97 |
