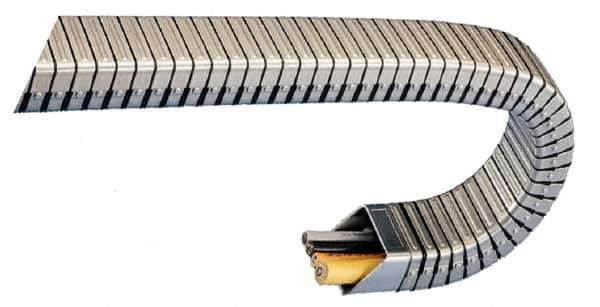

KabelSchlepp - 1 Ft. Long, Stainless Steel, Enclosed Cable and Hose Carrier - 4.01 Inch Inside Width x 2.05 Inch Inside Height, 4.92 Inch Outside Width x 2.64 Inch Outside Height, 8.86 Inch Bend Radius
Item #: 01278464
Brand: KabelSchlepp
Model #: 115R225X1FT
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Access Type | Enclosed |
| Overall Length (Feet) | 1 |
| Inside Height (Decimal Inch) | 2.0500 |
| Inside Height (mm) | 52 |
| Inside Width (mm) | 102 |
| Inside Width (Decimal Inch) | 4.0100 |
| Outside Height (mm) | 67 |
| Outside Height (Decimal Inch) | 2.6400 |
| Outside Width (mm) | 125 |
| Outside Width (Decimal Inch) | 4.9200 |
| Bend Radius (mm) | 225 |
| Bend Radius (Decimal Inch) | 8.8600 |
| Number of Sections | 100 |
| Link to Link Pitch (mm) | 25 |
| Link to Link Pitch (Decimal Inch) | 0.9800 |
| Material | Stainless Steel |
| Standards Met | TUV Approved w/ 2 PfG 1036/10.97 |
