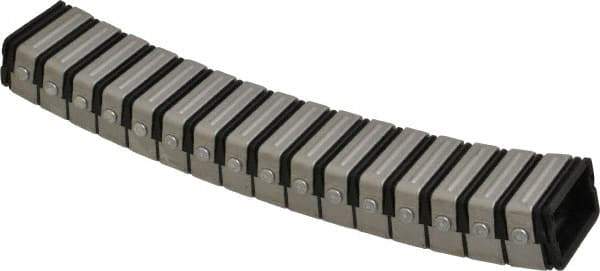

KabelSchlepp - 1 Ft. Long, Stainless Steel, Enclosed Cable and Hose Carrier - 1.77 Inch Inside Width x 0.98 Inch Inside Height, 2.44 Inch Outside Width x 1-1/2 Inch Outside Height, 2.56 Inch Bend Radius
Item #: 01278282
Brand: KabelSchlepp
Model #: 055R065X1FT
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Access Type | Enclosed |
| Overall Length (Feet) | 1 |
| Inside Height (Decimal Inch) | 0.9800 |
| Inside Height (mm) | 25 |
| Inside Width (mm) | 45 |
| Inside Width (Decimal Inch) | 1.7700 |
| Outside Height (mm) | 38 |
| Outside Height (Decimal Inch) | 1-1/2 |
| Outside Width (mm) | 62 |
| Outside Width (Decimal Inch) | 2.4400 |
| Bend Radius (mm) | 65 |
| Bend Radius (Decimal Inch) | 2.5600 |
| Number of Sections | 100 |
| Link to Link Pitch (mm) | 20 |
| Link to Link Pitch (Decimal Inch) | 0.7900 |
| Material | Stainless Steel |
| Standards Met | TUV Approved w/ 2 PfG 1036/10.97 |
