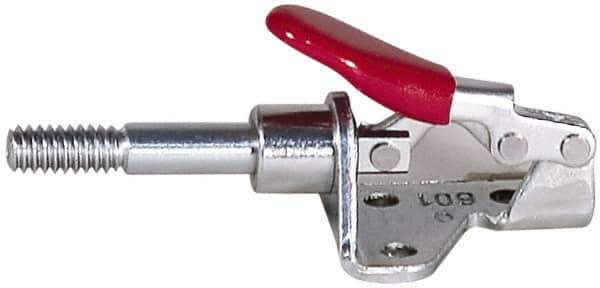

De-Sta-Co - 300 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 4 Mounting Holes, 0.22" Mounting Hole Diam, 0.44" Plunger Diam, Straight Handle
Item #: 01208867
Brand: De-Sta-Co
Model #: 605-M
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 1334.47 |
| Load Capacity (Lb.) | 300.00 |
| Plunger Travel (mm) | 31.75 |
| Plunger Travel (Decimal Inch) | 1.2500 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | M8 |
| Plunger Centerline Height (mm) | 24.64 |
| Plunger Centerline Height (Decimal Inch) | 0.9700 |
| Plunger Diameter (Decimal Inch) | 0.4400 |
| Plunger Diameter (mm) | 11.18 |
| Base Style | Flanged |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 5.4700 |
| Overall Height (Decimal Inch) | 4.2900 |
| Base Length (Decimal Inch) | 3.4100 |
| Base Width (Decimal Inch) | 2.1900 |
| Handle Color | Red |
| Number of Mounting Holes | 4 |
| Length Distance Between Mount Holes (mm) | 35.05 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.3800 |
| Width Distance Between Mount Holes (mm) | 41.40 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.6300 |
| Mounting Hole Diameter (mm) | 5.59 |
| Mounting Hole Diameter (Decimal Inch) | 0.2200 |
| Base Width (mm) | 55.63 |
| Base Length (mm) | 86.61 |
| Overall Length (mm) | 138.94 |
| Overall Height (mm) | 108.97 |
| Maximum Mechanical Advantage | 40:1 (Pulling); 45:1 (Pushing) |
