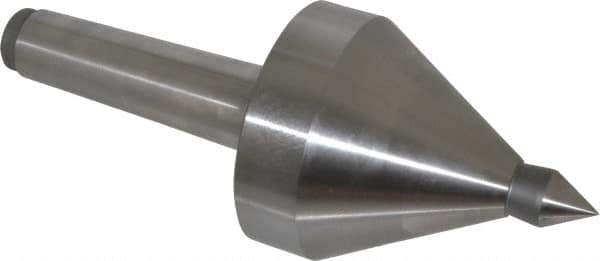

Royal Products - MT4 Taper Shank, 3-3/8" Head Diam 5,700 & 6,865 Lb Capacity Live Center - 3,500 Max RPM, 3.15" Head Length, 3/4" Point Diam, 1-1/8" Point Len, 1,165 Lb Max Workpc, 8-11/16" OAL, 3/4" Tip Diam, Long Point
Item #: 01028380
Brand: Royal Products
Model #: 10835
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1165.00 |
| Point Style | Long |
| Point Diameter (Inch) | 3/4 |
| Point Diameter (Decimal Inch) | 0.7500 |
| Tip Diameter (Inch) | 3/4 |
| Tip Diameter (Decimal Inch) | 0.7500 |
| Point Length (Inch) | 1-1/8 |
| Point Length (Decimal Inch) | 1.1250 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 5700.00; 6865.00 |
| Thrust Load (Lb.) | 5700.00 |
| Radial Load (Lb.) | 1165.00 |
| Head Diameter (Decimal Inch) | 3.3750 |
| Head Diameter (Inch) | 3-3/8 |
| Head Length (Decimal Inch) | 3.1500 |
| Taper Length (Inch) | 4-1/16 |
| Shank Length (Decimal Inch) | 4.4375 |
| Overall Length (Inch) | 8-11/16 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 3500 |
| Material | Steel |
| Carbide-Tipped | No |
