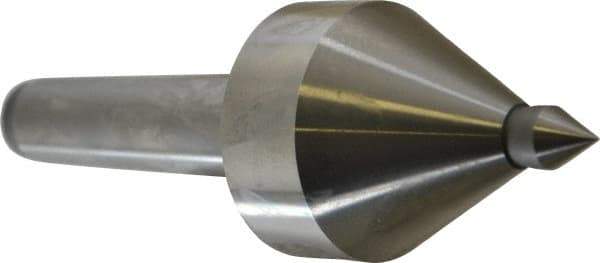

Royal Products - MT3 Taper Shank, 2-1/8" Head Diam 2,160 & 2,490 Lb Capacity Live Center - 5,000 Max RPM, 2.22" Head Length, 1/2" Point Diam, 0.74" Point Len, 330 Lb Max Workpc, 6-3/8" OAL, 1/2" Tip Diam, Long Point
Item #: 01028356
Brand: Royal Products
Model #: 10832
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 330.00 |
| Point Style | Long |
| Point Diameter (Inch) | 1/2 |
| Point Diameter (Decimal Inch) | 0.5000 |
| Tip Diameter (Inch) | 1/2 |
| Tip Diameter (Decimal Inch) | 0.5000 |
| Point Length (Decimal Inch) | 0.7400 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 2160.00; 2490.00 |
| Thrust Load (Lb.) | 2160.00 |
| Radial Load (Lb.) | 330.00 |
| Head Diameter (Decimal Inch) | 2.1250 |
| Head Diameter (Inch) | 2-1/8 |
| Head Length (Decimal Inch) | 2.2200 |
| Taper Length (Inch) | 3-3/16 |
| Shank Length (Decimal Inch) | 3.4375 |
| Overall Length (Inch) | 6-3/8 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 5000 |
| Material | Steel |
| Carbide-Tipped | No |
