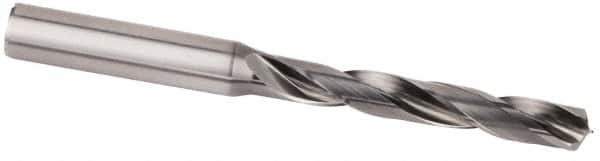

Kennametal - 11/32" 135° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 58483868
Brand: Kennametal
Model #: 4053475
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Aluminum Chromium (AlCr) is a blended coating for high performance applications. It is extremely heat and wear resistant and used in cast iron applications due to its high hot hardness.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 11/32 |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer AlCr |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (Decimal Inch) | 3.2283 |
| Flute Length (mm) | 82.00 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 70.70 |
| Maximum Drilling Depth (Decimal Inch) | 2.7835 |
| Shank Length (mm) | 41 |
| Shank Length (Decimal Inch) | 1.5945 |
| Drill Point Length (mm) | 2.27 |
| Drill Point Length (Decimal Inch) | 0.0895 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0002 to +0.0008 |
| Material Grade | KCK10 |
| Series/List | K256A-YPC |
