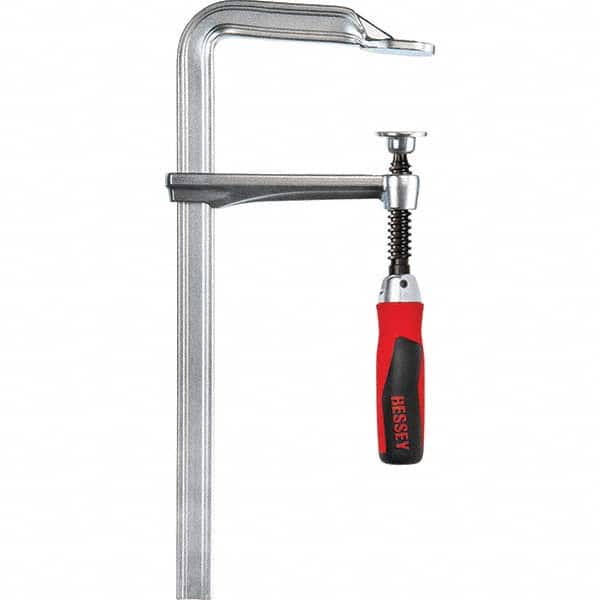

Bessey - Sliding Arm Clamps Clamp Type: Standard Maximum Capacity (Inch): 12
Item #: 29987666
Brand: Bessey
Model #: GZ30-12PH
Features and Benefits
Sliding arm clamps are used for holding a workpiece in place during an operation. The sliding arm is designed with a rail, pressure plate and sliding jaw for fast clamping action. An extender block or V-pad will be required for some applications.
Product Specifications
Sliding Arm Clamps; Clamp Type: Standard ; Maximum Capacity (Inch): 12 ; Throat Depth (Inch): 4-3/4 ; Throat Depth (cm): 12.00 ; Handle Style: Pivot ; Frame Material: Cold-Drawn Alloy Steel
| Clamp Type | Standard |
| Maximum Capacity (Inch) | 12 |
| Throat Depth (Inch) | 4-3/4 |
| Throat Depth (cm) | 12.00 |
| Handle Style | Pivot |
| Frame Material | Cold-Drawn Alloy Steel |
| Clamping Pressure (Lb.) | 1300 |
| Series | GZ |
| Spindle Diameter (Inch) | 11/16 |
| Spindle Material | Alloy Steel |
| Rail Size (Inch) | 1-3/32 x 7/16 |
| Rail Length (Inch) | 16 |
| Finish/Coating | Zinc plated |
| Pad Material | Steel |
