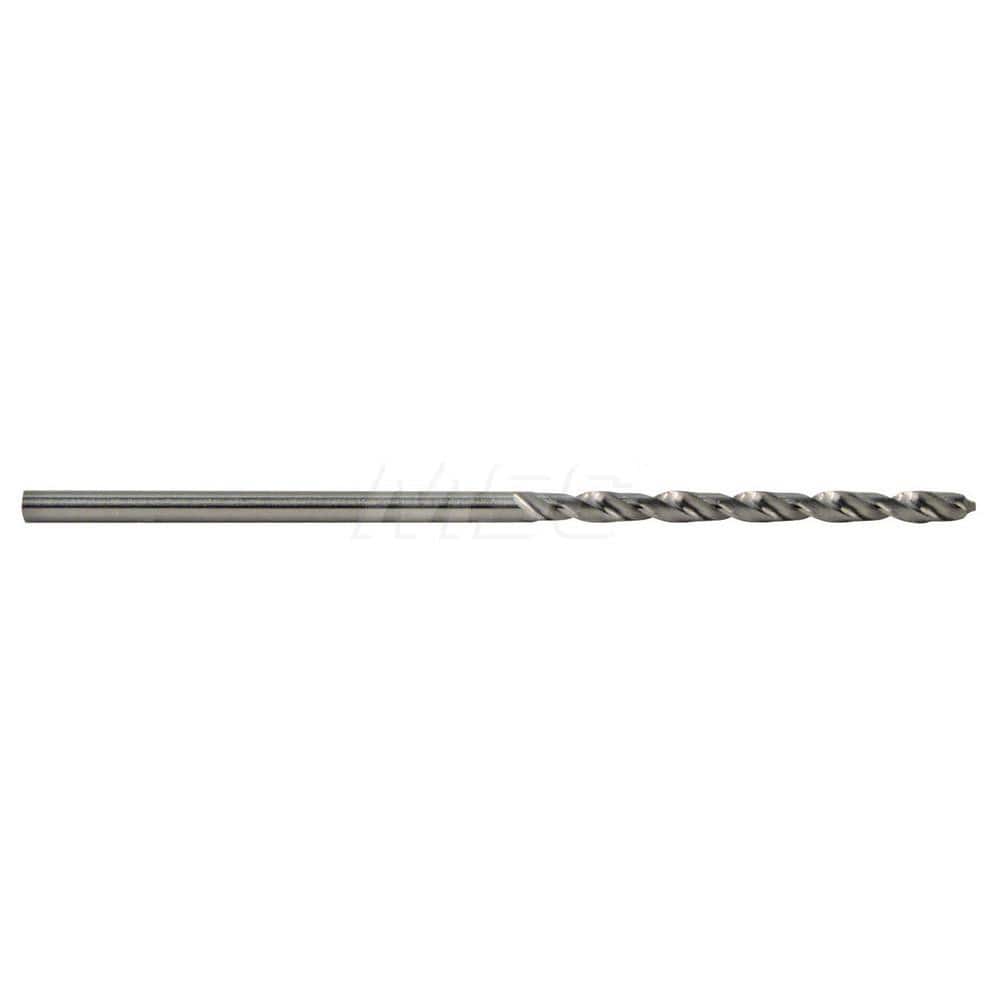

#11, 118° Drill Point, 4.85mm Shank Diam, Fast Spiral Circuit Board Drill Bit 3/4″ Flute Length, 1-1/2″ OAL, Series 300
Item #: 00988113
Brand: M.A. Ford?
Model #: 30019100
Product Specifications
| Drill Bit Size (Wire) | #11 |
| Drill Bit Size (Decimal Inch) | 0.1910 |
| Drill Bit Size (mm) | 4.85 |
| Drill Point Angle | 118 ? |
| Tool Material | Carbide |
| Shank Diameter (mm) | 4.85 |
| Flute Length (Inch) | 3/4 |
| Flute Length (mm) | 19.05 |
| Flute Length (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Spiral Type | Fast Spiral |
| Series | 300 |
| Web Configuration | Tapered |
| Cutting Direction | Right Hand |
| Helix Angle | 35 ? |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; N |
| Number Of Flutes | 2 |
| Drill Bit Grade | Heavy Duty |
| Material Application | Non-Ferrous Metals; Cast Iron; Plastics |
